VSG laminated safety glass (2-layer and 3-layer): Overview of structure and applications

VSG (Vinyl Safety Glass) laminated safety glass is a type of glass constructed from multiple layers of glass bonded together with a PVB (Polyvinyl Butyral) film or other specialized adhesive films to enhance durability and strength. Among these, 2-layer and 3-layer VSG laminated safety glass are the two most common types, widely used in construction, automotive, interior design, and projects requiring high safety standards. The main difference between these two types lies in the number of glass layers and adhesive film layers, which directly affects their strength, impact resistance, puncture resistance, and sound and heat insulation capabilities.

Detailed structure of 2-layer and 3-layer VSG laminated safety glass.

VSG laminated safety glass typically consists of two sheets of float or tempered glass bonded together with one or more layers of PVB film. This film holds the shattered glass fragments together during a strong impact, preventing injury to users. The thickness of each glass sheet and film layer can be adjusted according to technical requirements and intended use.

Meanwhile, VSG laminated safety glass, with its three layers, is constructed from three sheets of glass bonded together with two or more alternating PVB film layers. This design not only enhances strength but also significantly improves sound and heat insulation. In particular, three-layer glass offers superior puncture resistance and protection against light bullets, making it suitable for projects requiring a higher level of security, such as banks, critical offices, or public buildings.

Technical specifications and types of glass used

VSG laminated safety glass can utilize various types of glass, such as standard float glass, tempered glass, low-e glass, or reflective glass, depending on the intended use. Key technical specifications include:

• Glass thickness: Typically ranges from 3mm to 12mm per sheet of glass.
• PVB film thickness: Typically from 0.38mm to 1.52mm, multiple layers can be used to enhance safety.
• Glass panel size: Can be manufactured to order in large sizes, suitable for modern architectural projects.
• Additional features: UV protection, heat insulation, soundproofing, and scratch resistance.

Advantages and practical applications of 2-layer and 3-layer VSG laminated safety glass.

VSG laminated safety glass offers basic safety by holding shattered glass fragments together upon impact, minimizing the risk of injury. This type of glass is commonly used in windows, doors, interior partitions, and areas with moderate traffic. Additionally, double-layered glass provides good sound and thermal insulation, improving energy efficiency in buildings.

VSG laminated safety glass, with its 3-layer structure, is highly regarded for its safety and performance. This multi-layered structure offers superior strength, puncture resistance, and noise reduction. Therefore, 3-layer glass is commonly used in projects requiring high safety standards, such as banks, shopping malls, high-rise buildings, and areas prone to impact or strong external forces.

Comparing sound insulation and thermal insulation effectiveness

VSG 3-layer laminated safety glass offers superior sound insulation compared to 2-layer glass due to its thicker film and greater number of glass layers. This minimizes external noise, creating a quieter and more comfortable space for users. In terms of thermal insulation, 3-layer glass is also more effective thanks to its multi-layer structure, which limits heat transfer through the glass, contributing to energy savings for air conditioning systems.

Quality standards and manufacturing process for VSG laminated safety glass.

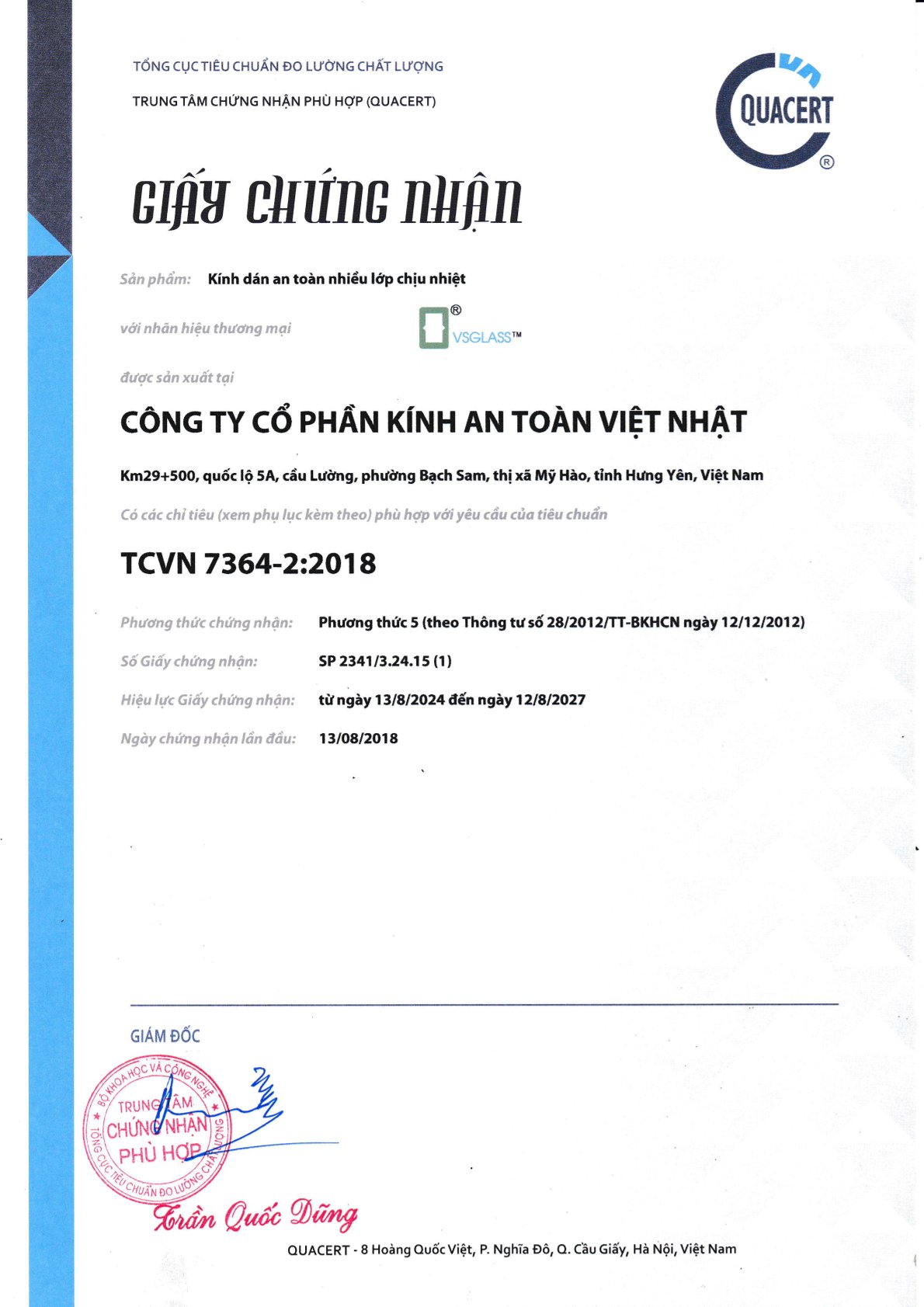

VSG laminated safety glass must comply with international and national safety standards for glass, such as EN 12543 (Europe), ASTM C1172 (USA), or TCVN (Vietnam). These standards specify the mechanical strength, impact resistance, fragment retention capacity, and other physical properties of safety glass.

The manufacturing process for laminated safety glass (VSG) includes the following main steps:

• Preparing the glass: Cut the glass to the required size and clean the surface to ensure proper adhesion of the film.
• Glass and film lamination: Layering the glass and film according to the correct technical procedure, ensuring there are no air bubbles or impurities between the layers.
• Glass lamination: Using a vacuum press and furnace to bond layers of glass and film into a single, homogeneous unit.
• Quality control: Conduct tests for durability, load-bearing capacity, transparency, and other technical characteristics.

Strict quality control at every stage of production ensures that VSG laminated safety glass achieves optimal performance and meets the stringent technical requirements of customers.

Maintenance requirements and usage instructions for VSG laminated safety glass.

VSG laminated safety glass requires regular maintenance to maintain its effectiveness and long-term durability. Some important points to note include:

• Clean the glass using specialized cleaning solutions, avoiding highly corrosive detergents.
• Regularly inspect the edges of the glass and the adhesive to detect early signs of peeling or damage.
• Avoid strong impacts or using sharp objects that directly impact the glass surface.
• Ensure that the frame and mounting accessories for the glass are sturdy and suitable for the weight and size of the glass.

Adherence to proper maintenance and usage guidelines will help extend the lifespan of VSG laminated safety glass, while maintaining the product's safety and aesthetic features.
