VSG glass in large sizes upon request.
VSG glass in large sizes upon request: The optimal solution for modern buildings.
Large-format VSG glass (laminated safety glass) is becoming the top choice in modern construction and interior design projects. With its superior strength, high durability, and excellent aesthetics, large-format VSG glass meets the stringent technical and aesthetic requirements of large-scale projects such as office buildings, shopping malls, hotels, and high-end residential buildings.
Specifications of large-format VSG glass
VSG glass is constructed from two or more layers of tempered glass bonded together with a PVB (Polyvinyl Butyral) or SGP (SentryGlas Plus) film. When manufactured in large sizes, VSG glass must meet stringent technical standards to maintain durability and safety during use.
Common glass sizes and thicknesses
Large-format VSG glass typically measures up to 3m x 6m or larger, depending on customer requirements and factory production capacity. Common glass thicknesses range from 8mm to 25mm, depending on the intended use and structural requirements of the building. Choosing the appropriate thickness optimizes load-bearing capacity, impact resistance, and sound and thermal insulation.
Safety and quality standards
Large-format VSG glass must comply with international standards such as EN 14449, ASTM C1172, and Vietnamese standards TCVN to ensure safety during use. These standards specify load-bearing capacity, impact resistance, fire resistance, and safety in case of breakage. In particular, the film applied between the glass layers helps hold broken glass fragments together, minimizing the risk of injury.
Applications of large-format VSG glass in construction and design.
Large-format VSG glass is widely used in many fields due to its superior features and flexible customization options. Some typical applications include:

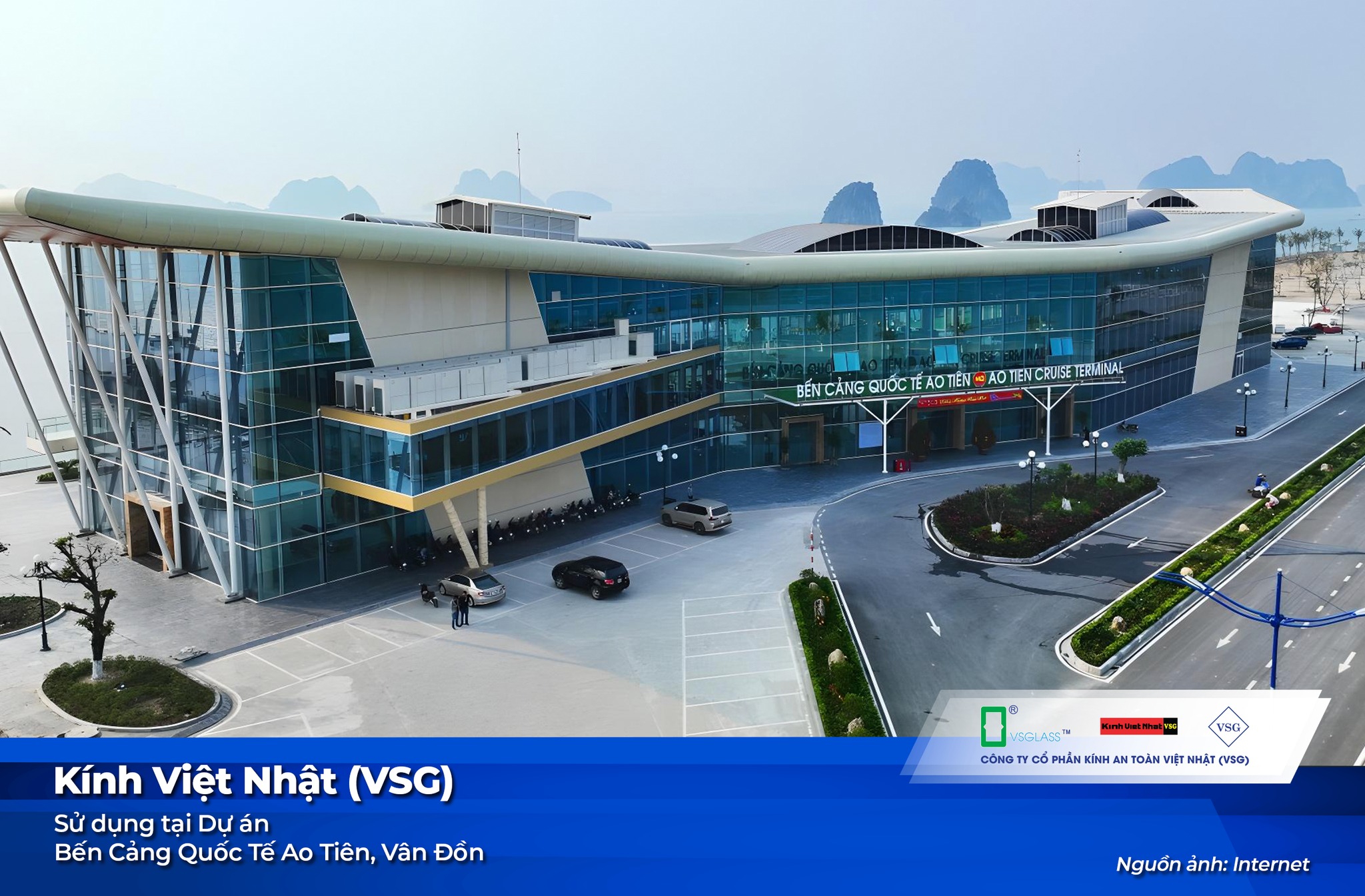

- High-rise building glass facades: Large-format VSG glass creates seamless facades, enhancing aesthetics and maximizing natural light for the building.
- Large glass doors and partitions: Meeting the need for open spaces, creating a spacious and luxurious feel for office areas and shopping centers.
- Glass railings and staircases: Enhance safety and add a modern aesthetic to interior spaces.
- Glass roofs and skylights: Large-format VSG glass is strong and durable, ensuring safety when used as a roof or skylight, while also keeping the space bright.
VSG large-format glass manufacturing and processing technology
The production of large-format VSG glass requires advanced technology and a rigorous quality control process. This process includes the following main steps:
- Glass cutting: Using precision CNC cutting machines to create glass sheets of the required size.
- Edge finishing and hole drilling: To ensure safety and ease of installation, the glass edges are sanded smooth and drilled with technical holes according to the design.
- Heat treatment and tempering: The glass is placed in a furnace at a temperature of approximately 600 degrees Celsius, then rapidly cooled to increase its strength.
- Glass lamination: Layers of tempered glass are tightly pressed together with a PVB or SGP film in a vacuum chamber, removing air bubbles and creating a strong bond.
- Quality control: Each finished glass panel undergoes thorough inspection for flatness, transparency, strength, and safety.
Modern technology enables VSG large-format glass to not only meet technical standards but also fulfill special requirements such as colored glass, reflective glass, heat-insulating glass, or UV-resistant glass.
Factors affecting the price and selection of large-format VSG glasses.
The cost of large-format VSG glass depends on many technical factors and the specific requirements of each project. Some of the main factors include:
- Glass size and thickness: The larger and thicker the glass, the higher the production cost due to the greater technical requirements and materials needed.
- Types of window films: Traditional PVB films are less expensive than premium SGP films, but SGP films offer better durability and strength.
- Special requirements: Tinted glass, reflective glass, heat-insulating glass, or UV-resistant glass will increase costs due to more complex manufacturing processes.
- Shipping and installation costs: Large-format glass requires specialized transportation and professional installation techniques to ensure safety and quality.
Choosing large-format VSG glass requires careful consideration of technical requirements, aesthetics, and project budget to achieve the best results.
Large-format VSG glass supply service at Ngoc Quyet Company
Ngoc Quyet Company is a reputable supplier specializing in large-format VSG glass with a wide variety of designs and types to suit many different projects. Our team of experienced technicians is always ready to advise, design, and provide detailed quotations according to the specific requirements of our customers.
Customers requiring large-format VSG glass can contact us directly for prompt assistance and to receive actual glass samples for quality assessment before deciding to collaborate. The company is committed to providing high-quality products, on-time delivery, and dedicated technical support.
Contact us at 0966.321.655 for detailed advice and pricing.
